尺寸
| 品名 | 尺寸 (mm) | Impedance(Ω)・2T | 適合電線 尺寸 |
重量 (g) |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | 25MHz | 100MHz | ||||
| 3A4-TMEC-TR16BS | 18.8±1 | 7.8±1 | 23.95±1 | 22.4±1 | 16.4±1 | 25.95±1 | 180min | 330min | φ7max | 13 | |
| 3A4-TMEC-TR16AS | 18.8±1 | 7.8±1 | 23.95±1 | 25.4±1 | 19.4±1 | 25.95±1 | 200min | 390min | φ7max | 16 | |
| 3A4-TMEC-TR20S | 23.2±1 | 9.8±1 | 28.2±1 | 19.4±1 | 13.4±1 | 30.2±1 | 145min | 290min | φ9max | 16 | |
| 3A4-TMEC-TR23S | 26.6±1 | 11.0±1 | 31.6±1 | 23.4±1 | 17.4±1 | 33.6±1 | 215min | 365min | φ10max | 28 | |
| 3A4-TMEC-TR25S | 27.5±1 | 14.6±1 | 32.85±1 | 21.4±1 | 15.4±1 | 34.85±1 | 125min | 265min | φ14max | 23 | |

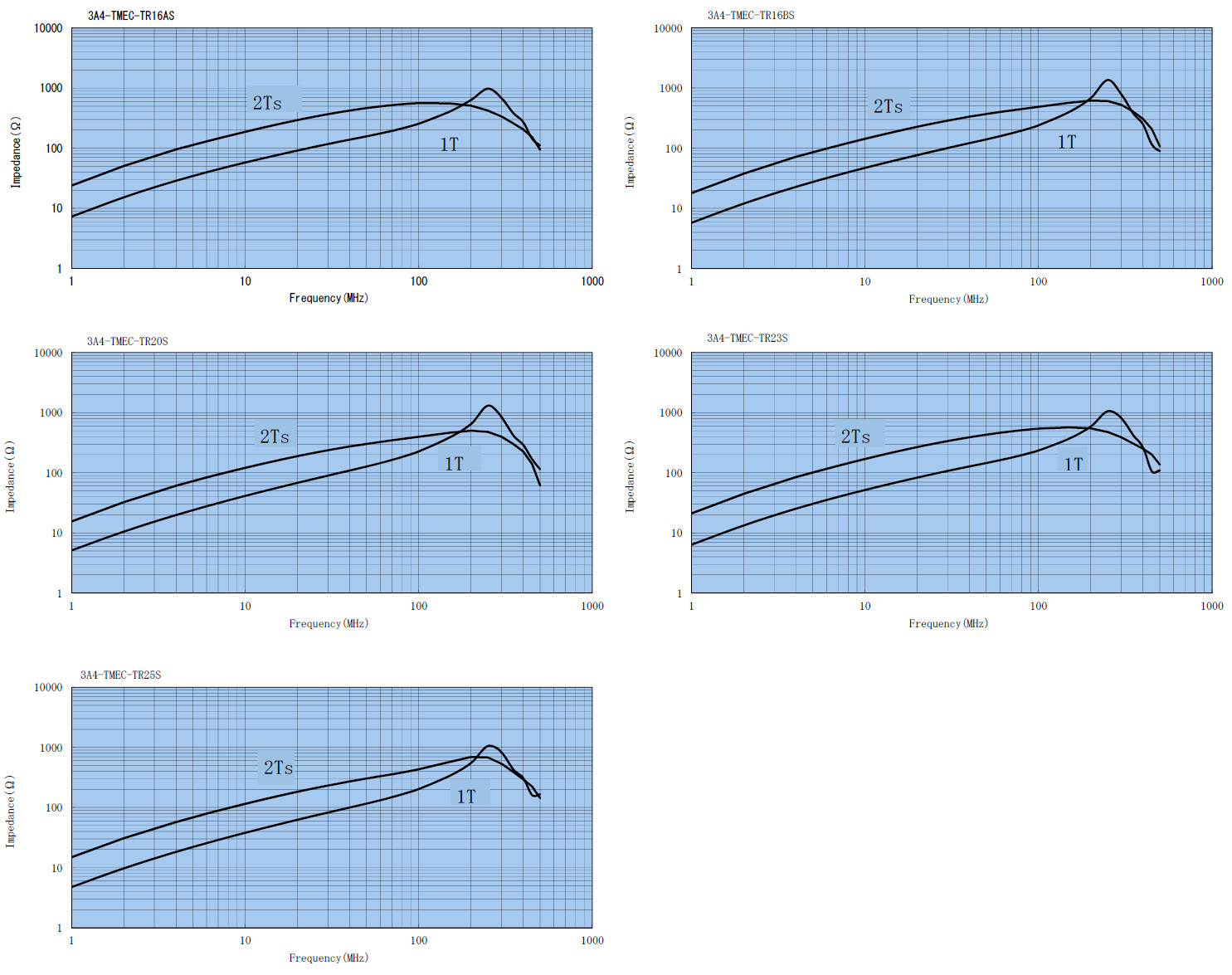

阻抗特性
